Bash Almanac

function term_init {
  #
  # Assign useful terminal sequences that are compatible with any
  # 256-color VGA terminal, if available. There is, however, no
  # ill-effect if the terminal does not - in which case variables
  # will simply be empty and produce no output. Requires Bash >= 3.
  #
  # Usage:
  #   term_init         : Create variables.
  #   term_init demo    : Demonstrate (verify).
  #   term_init cleanup : Remove variables if source exectued.
  #
  # Define arrays of variable names and appropriate tput arguments.
  local -a tput_fg=( 'C0:setaf 0' 'C1:setaf 1' 'C2:setaf 2' 'C3:setaf 3'
                     'C4:setaf 4' 'C5:setaf 5' 'C6:setaf 6' 'C7:setaf 7' )
  local -a tput_bfg=( 'B0:setaf 0' 'B1:setaf 1' 'B2:setaf 2' 'B3:setaf 3'
                      'B4:setaf 4' 'B5:setaf 5' 'B6:setaf 6' 'B7:setaf 7' )
  local -a tput_bg=( 'R0:setab 0' 'R1:setab 1' 'R2:setab 2' 'R3:setab 3'
                     'R4:setab 4' 'R5:setab 5' 'R6:setab 6' 'R7:setab 7' )
  local -a tput_misc=( 'BD:bold' 'RG:bel' 'BL:blink' 'T0:sgr0' 'U1:cuu1'
                       'RV:rev' 'ED:ed' 'EL:el' 'HC:civis' 'RC:cnorm' )
  local i i1 i2
  #
  case "$1" in

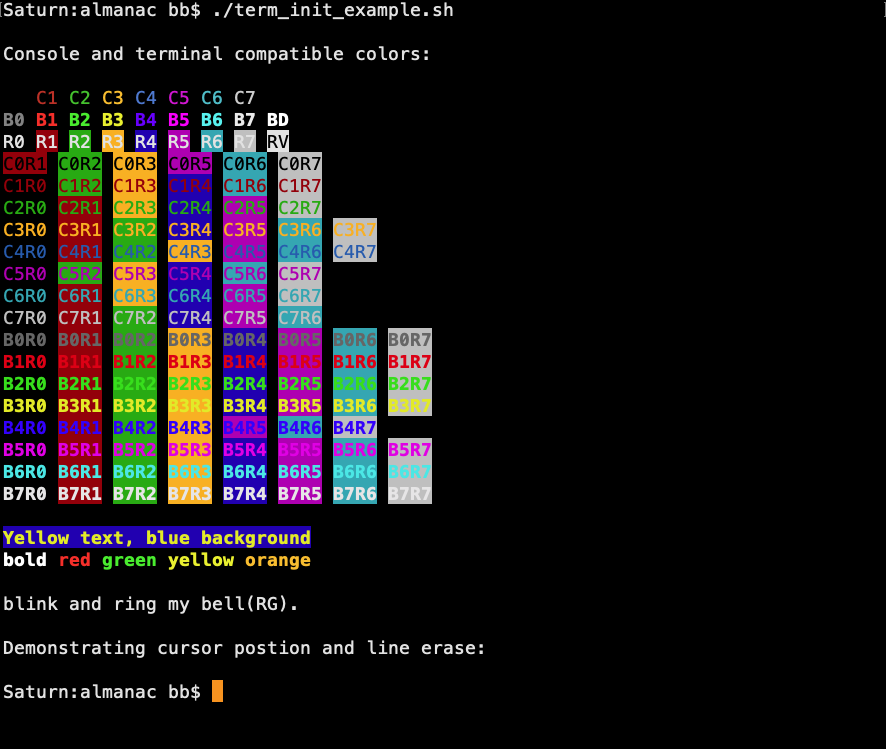

    demo)
      echo -e "\nConsole and terminal compatible colors:\n"
      for i in "${tput_fg[@]}" "${tput_bfg[@]}" BD "${tput_bg[@]}" RV; do
        i1="${i%:*}"
        echo -n "${!i1}$i1${T0} "
        case $i1 in C7|BD|RV) printf "\n";; esac
      done
      for i1 in "${tput_fg[@]}"; do
        i1="${i1%:*}"
        for i2 in "${tput_bg[@]}"; do
          i1="${i1%:*}" i2="${i2%:*}"
          [[ ${i1#C} == ${i2#R} ]] && continue
          case $i1$i2 in C6R2|C2R6|C5R1|C1R5|C7R3|C0R4) continue;; esac
          echo -n "${!i1}${!i2}$i1$i2${T0} "
        done; echo
      done
      for i1 in "${tput_bfg[@]}"; do
        for i2 in "${tput_bg[@]}"; do
          i1="${i1%:*}" i2="${i2%:*}"
          case $i1$i2 in B3RV|B4R4) continue;; esac
          echo -n "${!i1}${!i2}$i1$i2${T0} "
        done; echo
      done
    ;;
    cleanup)
      # Remove variables defined by term_init. This is useful to clean up
      # the shell (ENV) if term_init was source executed.
      # script has been source executed.
      local -a all=( "${tput_fg[@]}" "${tput_bfg[@]}" "${tput_bg[@]}"
                     "${tput_misc[@]}" )
      for i in "${all[@]}"; do unset "${i%:*}"; done
      # Restore default Linux 16-color terminal palette and $TERM.
      if [[ "${TERM}" == linux ]]; then
        setvtrgb vga
      elif [[ -n ${TERM_INIT_OLD_TERM} ]]; then
        export TERM="${TERM_INIT_OLD_TERM}"
        unset TERM_INIT_OLD_TERM
      fi
      unset -f term_init
    ;;
    *)
      # Define variables that produce the same or similar color output
      # under Linux VGA-style 16-color (console, TERM=linux) and terminal
      # emulators (SSH, xterm-256color).
      for i in "${tput_fg[@]}" "${tput_bg[@]}" "${tput_misc[@]}"; do
        printf -v "${i%:*}" '%s' "$(tput ${i#*:} 2>/dev/null)"
      done
      # Bright colors, add bold.
      for i in "${tput_bfg[@]}"; do
        printf -v "${i%:*}" '%s' "${BD}$(tput ${i#*:} 2>/dev/null)"
      done
      # Alter the Linux console color map to replace dark yellow with a
      # more visible orange, thereby providing an additional color and
      # improving compatiblity with modern terminal emulation.
      # Note that bold orange (BD+C3) becomes bright yellow.
      if [[ "${TERM}" == linux ]]; then
        # Match Linux console and xterm-256 colors.
        echo "0,170,0,255,0,170,0,192,85,255,85,255,85,255,85,255
              0,0,170,199,0,0,170,192,85,85,255,255,85,85,255,255
              0,0,0,6,176,170,170,192,85,85,85,85,255,255,255,255" \
              | setvtrgb -
      else
        # Any SSH client/terminal worth mentioning supports xterm-256color.
        # Some installations may not be configured properly. Nevertheless,
        # restore the original TERM value when running term_init cleanup.
        # Override default orange and blue to match Linux console colors.
        TERM_INIT_OLD_TERM="${TERM}"
        export TERM=xterm-256color
        C3=$(tput setaf 214)  # Orange
        R3=$(tput setab 214)  # Orange background
        C4=$(tput setaf 25)   # Blue
      fi
    ;;
  esac
}

function mute {
  # Optional feature to suppress keyboard and cursor output
  # when it can interfere with proper box and content rendering.
  #
  # $1 on:  Hide cursor, disable terminal echo, disable CTRL/C/D/Z.
  #         Stop user/keyboard interference while rendering screen output.
  # $1 off: Restore previously saved terminal state.
  #
  local hc=$( tput civis ); local rc=$( tput cnorm )
  #
  case $1 in
   on) sav_0=$( stty -g </dev/tty )  # Save tty settings. Global scope.
       stty -echo -icanon susp '?' intr '?' eof '?' </dev/tty
       printf ${hc} ;;
   off) stty ${sav_0} </dev/tty
        printf ${rc} ;;
  esac
}

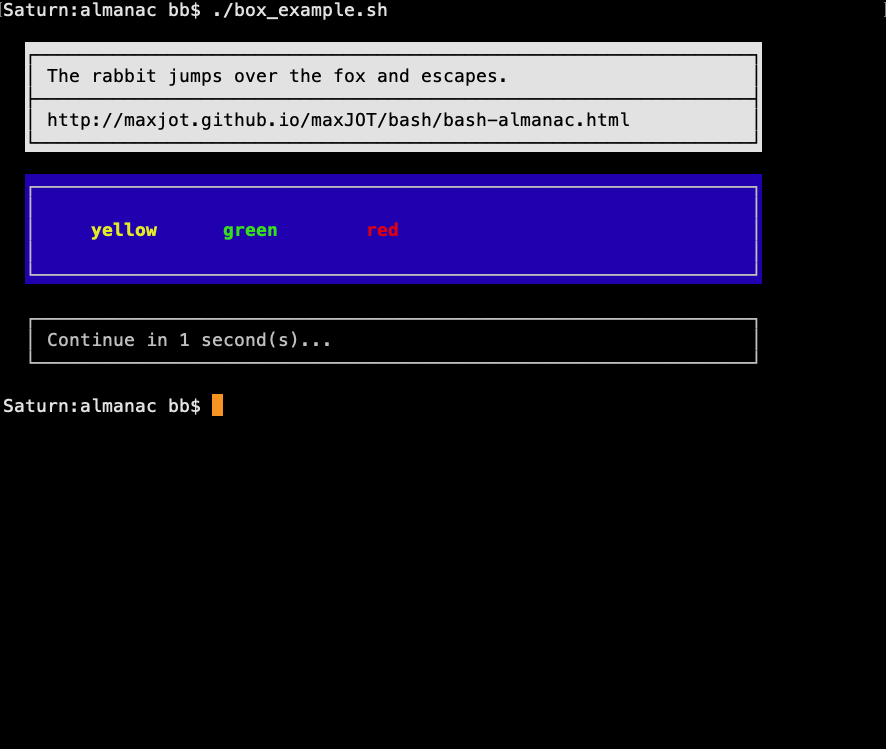

function box {
  # $1 = Color scheme.
  # $2 = Text.
  # $3 = Format (optional):
  #      0 = standard newline (default).
  #      1 = do not move the cursor.
  #      2 = move the cursor to the beginning of the line (\r).
  # Example: box r --top
  #          box r "The rabbit jumps over the fox" 1
  #          box r "and escapes."
  #          box r --middle
  #          box r "https://maxjot.github.io/maxJOT/ref/boxes_and_borders"
  #          box r --bottom
  #
  # Note: lastarg_0 = global mutable.
  [[ -z ${lastarg_0} ]] && lastarg_0=0
  local maxlen background indent fb t0
  local box_top box_middle box_bottom box1 box2 box3 box4 box5 box6 box7 box8
  t0=$( tput sgr0 )
  maxlen=65
  box1='┌' box2='─' box3='┐' box4='│' box5='└' box6='┘' box7='├' box8='┤'
  # Generate horizontal line.
  box2=$( eval printf "${box2}%.0s" {1..${maxlen}} )
  # Generate top middle and bottom box-lines.
  box_top=$( printf "${box1}${box2}${box3}" )
  box_middle=$( printf "${box7}${box2}${box8}" )
  box_bottom=$( printf "${box5}${box2}${box6}" )
  # Used for white space with background.
  # printf -v background '%*s' ${maxlen} ''
  background=$( eval printf -- '\ %.0s' {1..${maxlen}} )
  # Set forground and background color.
  case $1 in
    4) fb=$( tput setaf 7; tput setab 4 ) ;; # white/blue
    0) fb=$( tput setaf 7; tput setab 0 ) ;; # black/white
    r) fb=$( tput rev ) ;; # Reverse
    *) fb= ;;      # No color
  esac
  indent="  ${fb}${box4}${t0}"
  if [[ "$2" == --top ]]; then
    printf "  ${fb}${box_top}${t0}\n"
    lastarg_0=0
  elif [[ "$2" == --bottom ]]; then
    printf "  ${fb}${box_bottom}${t0}\n"
    lastarg_0=0
  elif [[ "$2" == --middle ]]; then
    printf "  ${fb}${box_middle}${t0}\n"
    lastarg_0=0
  else
    # Insert indent depending on previous lastarg.
    case ${lastarg_0} in
      0) printf "   ${fb}${background}${box4}${t0}\r" ;;
      1) unset indent ;;
      2) ;;
      *) printf "   ${fb}${background}${box4}${t0}\r" ;;
    esac
    case "${3}" in
      0) printf "${indent}${fb} %s${t0}\n" "$2"
         lastarg_0=0 ;;
      1) printf "${indent}${fb} %s${t0}" "$2"
         lastarg_0=1 ;;
      2) printf "${indent}${fb} %s${t0}\r" "$2"
         lastarg_0=2 ;;
      *) printf "${indent}${fb} %s${t0}\n" "$2"
         lastarg_0=0 ;;
    esac
  fi
}

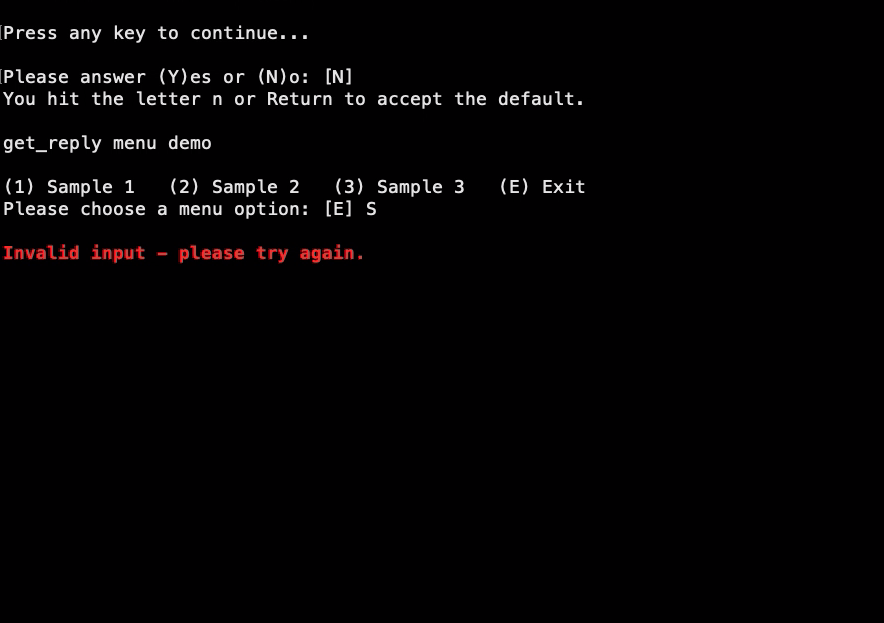

function get_reply {
  # Arguments:
  #   $1=prompt.
  #   $2=valid options (optional).
  # Output:
  #   $REPLY=option
  # Examples:
  #   get_reply "Press menu option:" "E 1 2 3 4"
  #   get_reply "Press any key to continue..."
  #   get_reply "Hit (y)es or (n)o, or (a)bort:" "Y N A"
  #
  # Note: $2 is optional. When specified, the first item
  # is automatically shown as the default answer. e.g. [E].
  # Any leading indentation in $1 automatically aligns the feedback.
  #
  # `read -t 0.1' causes an invalid timeout specification error
  # if not Bash 4 or later. Use 1 under Bash 3, which will still work
  # to flush the keyboard buffer, but cause a 1 second delay.
  #
  local tries=0 option prompt answer indent timeout
  local sav=$(stty -g </dev/tty)
  local hc=$(tput civis) rc=$(tput cnorm) u1=$(tput cuu1) ed=$(tput ed)
  local b1=$(tput bold; tput setaf 1) t0=$(tput sgr0)
  [[ ${BASH_VERSINFO:-0} -ge 4 ]] && timeout=0.1 || timeout=1
  # Restore cursor and cleanup prior to exiting the menu.
  opt_cleanup() {
    stty ${sav} </dev/tty; printf ${rc}; unset -f opt_msg opt_cleanup; }
  # Hide cursor, disable terminal echo, and show error message.
  opt_msg() {
    stty -echo </dev/tty; echo -e "${hc}\n${b1}$1${t0}"; sleep 1; }
  # Provide a dummy prompt when $1 is missing. Use any leading white
  # space when specified as indent, and align messages accordingly.
  if [[ -z $1 ]]; then
    prompt="?:"
  else
    indent=${1%%[!$' \t']*}
    prompt="$1"
  fi
  # Convert $2 to uppercase and make it an array for easier processing.
  # Adjust the prompt accordingly, using the first specified character
  # as default. Otherwise leave $1 as is (any key to continue).
  if [[ -n $2 ]]; then
    options=( $(printf '%s' "$2" | tr '[:lower:]' '[:upper:]') )
    default=${options[0]}
    prompt="$1 [${default}]"
  fi
  #
  while true; do
    # Flush the keyboard buffer.
    stty -icanon -echo </dev/tty
    read -r -t ${timeout:-0.1} -s --
    stty icanon echo </dev/tty # Set stdin to interactive mode.
    # Disable CTRL-D, CTRL-Z and CTRL-C (Requires read -e to function).
    stty susp '?' intr '?' eof '?' </dev/tty
    echo -en "${rc}${prompt}${ed}"
    # Read directly from the terminal when stdin is already
    # consumed by an outer while read loop or pipeline.
    read -r -e -n 1 -p " " answer </dev/tty 2>/dev/tty
    answer=$(printf '%s' "${answer}" | tr '[:lower:]' '[:upper:]')
    # No valid options = any key to continue.
    [[ -z ${2} ]] && { opt_cleanup; REPLY=${answer}; return 0; }
    # Apply default if the input is a Return.
    [[ -z ${answer} ]] && answer="${default}" # Default.
    for item in "${options[@]}"; do
      [[ "${answer}" == ${item} ]] \
         && { opt_cleanup; REPLY=${answer}; return 0; }
    done
    if (( tries++ == 2 )); then
      opt_msg "${indent}Aborting after 3 invalid answers."
      printf "\r${u1}${u1}${ed}"
      opt_cleanup
      return 3
    else
      opt_msg "${indent}Invalid input - please try again."
      printf "${u1}${u1}${u1}"
    fi
    stty ${sav} </dev/tty
  done
}

IAM=( ${BASH_SOURCE[0]##*/} 2.0 )

# Exit vs. return if source executed. Create a snapshot of
# variables and functions when source executed, so we can use
# this information later to restore the shell environment when
# executing the cleanup function.
#
if ( return 0 2>/dev/null ); then
  SOURCED=1
  ENV_VARIABLES=$( compgen -v )
  ENV_FUNCTIONS=$( compgen -A function )
else
  SOURCED=0
fi

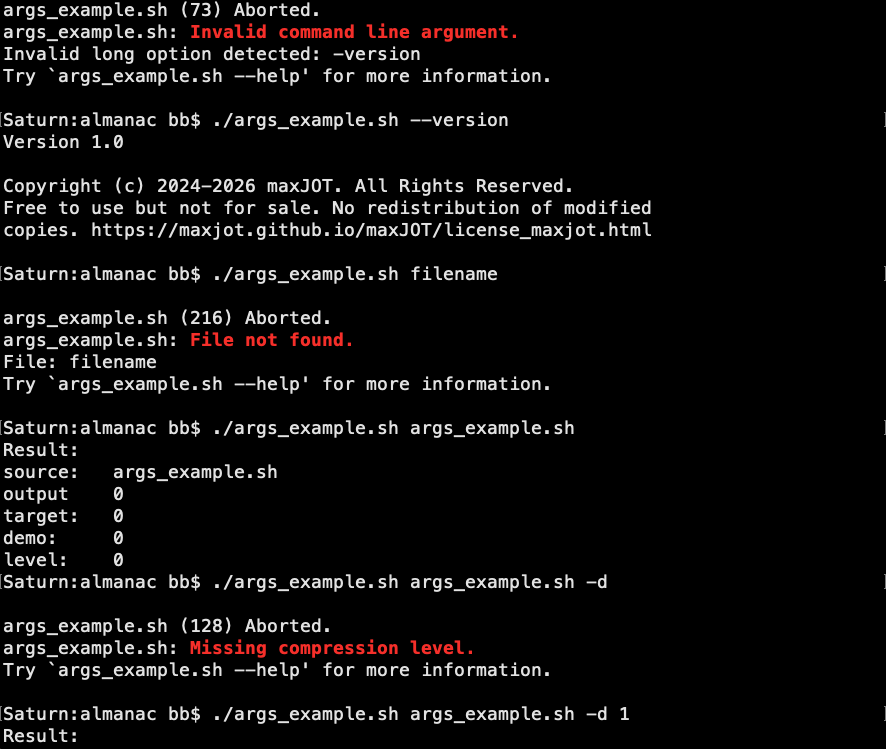

function show_help {
  echo "Usage:
  ${IAM} [--install | --uninstall]
  ${IAM} [-h | --help | --version | --changelog]
  ${IAM} [-x <type>] [-d] [-v] <target> [-o <directory>]
  ${IAM} [-x <type>] [-d] [-v] [-t] <target>"
  echo
  echo "Options:
  -h, --help                 show this help screen
      --version              show version
      --changelog
      --install              install this program
      --uninstall            uninstall this program
  -d, --debug                debug mode
  -o, --outdir <directory>   write output to directory
  -t, --test                 test run (no output)
  -v, --verbose              verbose operation
  -x, --extract <type>       extraction types:
                               0 audio
                               1 images
                               2 video
                               3 all of the above (default)"
  echo "Arguments:
  <target>                   file to process"
  echo
  echo "Examples:
  ${IAM} -dvx 1 sample.bin -o ~/Desktop"
  echo
  echo "Description:
  Demonstrates command-line argument parsing.
  URL: https://maxjot.github.io/maxJOT/bash/bash-almanac.html"
  echo
}

function show_version {
  echo "Version ${IAM[1]}"
  echo
  echo "Copyright (c) 2026 maxJOT. All Rights Reserved."
  echo "Free to use but not for sale. No redistribution of modified"
  echo "copies. https://maxjot.github.io/maxJOT/license_maxjot.html"
  echo
}

function run_install {
  echo
  msg I install "placeholder"
  echo
}

function run_uninstall {
  echo
  msg I uninstall "placeholder"
  echo
}

function show_changelog {
  echo "Changelog:
  Initial version 1.0 (15-Mar-2026)
  Version 2.0 (26-MAY-2026)
    - changing variable scope and naming
    - changing demo example
    - revisiting documentation sections
    - various coding and workflow changes
    - new validate section"
  echo
}

function msg {
  # Coherent messaging for errors and information.
  # (https://maxjot.github.io/maxJOT/bash/bash-almanac.html)
  # $1 = Severity E W I
  # $2 = Function or facility (optional)
  # $3 = Text (optional)
  #
  local b1 t0 iam opt cln fac= str=
  b1=$( tput bold; tput setaf 1)
  t0=$( tput sgr0 )
  cln="${BASH_LINENO[0]}" # Caller line number.
  iam="${IAM%.sh}"
  [[ -n $2 ]] && fac=", $2"
  [[ -n $3 ]] && str=", $3"
  [[ $1 == E ]] && str=", ${b1}$3${t0}"
  opt="${fac}${str}"
  case "$1" in
    E) printf "%%%s-E-%s%s\n\a" "${iam}" ${cln} "${opt}" >&2 ;;
    W) printf "%%%s-W-%s%s\n" "${iam}" ${cln} "${opt}" >&2 ;;
    I) printf "%%%s-I-%s%s\n" "${iam}" ${cln} "${opt}" ;;
    *) printf "%s\n" "$@" ;;
  esac
}

function cleanup {
    # Avoid tainting the calling shell environment with variables
    # and functions created by this script when source executed.
    # Be sure not to remove variables before functions!
    #
    local item
    while IFS= read -r item; do
      unset -f ${item}
    done < <( awk 'FNR==NR{a[$0]++;next}!($0 in a)' - \
                <<< "${ENV_FUNCTIONS}" <( compgen -A function ) )
    while IFS= read -r item; do
      unset ${item}
    done < <( awk 'FNR==NR{a[$0]++;next}!($0 in a)' - \
                <<< "${ENV_VARIABLES}" <( compgen -v ) )
    unset IAM
    unset -f cleanup
}

function phase_init {
  # Requires $LOPTS[] = list of long options, e.g.: help version.
  # Create a copy of the command-line arguments (args_0[]) for later
  # phases to work with (process/consume) and initialize all long option
  # arguments (--option) e.g.: help_0=0 version_0=0.
  #
  args_0=("$@")
  #
  # Save the original number of command-line arguments.
  # Later phases (phase 4) may use this value for boundary checks after
  # consumed arguments have been removed from args_0[].
  #
  LAST_INDEX=$#
  local var option
  for option in "${LOPTS[@]}"; do
    var="${option}_0"
    printf -v "${var}" '%d' 0
  done
}

function payload_init {
  # $1 = List of payload variables, e.g.: payload_init "type directory"
  # Create local payload variables (type_0= directory_0= ), but do not
  # override existing variables.
  #
  local option var
  for option in $1; do
    var="${option}_0"
    [[ -z ${!var} ]] && printf -v "${option}_0" '%s' ''
  done
}

function validate_option_sets() {
  # Validate that all options from LOPTS set to 1 belong to the same
  # option set defined in option_sets_0. Any selected option outside
  # that option set is considered an invalid combination.
  #
  local allowed applicable invalid=
  local option var

  for allowed in "${option_sets_0[@]}"; do
    applicable=0
    invalid=
    # Determine whether any option in this option set is set to 1.
    # If all variables are 0, then there is nothing to validate.
    #
    for option in ${allowed}; do
      var="${option}_0"
      (( ${!var} )) && { applicable=1; break; }
    done
    # Nothing to validate if $allowed includes no options set to 1.
    #
    (( applicable )) || continue
    # Any selected option from LOPTS that is not part of the current
    # option set is considered an invalid combination.
    #
    for option in "${LOPTS[@]}"; do
      var="${option}_0"
      (( ${!var} )) || continue
      [[ " ${allowed} " == *" ${option} "* ]] || invalid+=" --${option}"
    done
    if [[ -n ${invalid} ]]; then
      echo
      msg E args "invalid combination of options"
      msg I "Conflicting option(s): ${invalid# }"
      msg I "try \`${IAM} --help'"
      echo
      return 1
    fi
  done
}

function phase1_error_lopts {
  # After stripping the first two characters from the command-line
  # arguments args_0[], the remainder is matched against valid
  # long-option names LOPTS[] with their first character removed.
  # A match e.g. "elp" means that the command-line argument is an
  # invalid long option missing a dash (-), such as -help.
  #
  local args option i
  args=$( for option in "${LOPTS[@]}"; do printf '%s|' "${option:1}"; done )
  args=${args%|}  # Remove last |.
  for i in "${args_0[@]}"; do
    if grep -iqwE -- ${args} <<< ${i:2}; then
      echo
      msg E args "invalid command-line argument"
      msg I "invalid long option detected: $i"
      msg I "try \`${IAM} --help'"
      echo
      return
    fi
  done
  return 1
}

function args_remaining {
  # Any remaining entries in args_0 represent unrecognized arguments
  # and are treated as invalid input.
  #
  if (( ${#args_0[@]} > 0 )); then
    echo
    msg E args "invalid command-line argument"
    msg I "argument(s): ${args_0[*]}"
    msg I "try \`${IAM} --help'"
    echo
  else
    return 1 # Reverse status
  fi
}

function phase2_action {
  # Executes actions associated with enabled Phase 2 options.
  # Each enabled option maps to a corresponding *_ACTION handler.
  #
  status_0=0 # Default return status of actions.
  for option in "${LOPTS[@]}"; do
    var="${option}_0"
    (( ${!var} )) || continue
    action="$(printf '%s' "${option}_ACTION" | tr '[:lower:]' '[:upper:]')"
    "${!action}"
  done
}

function phase4_duplicate {
  # $1 $2 = Short and long option to check, e.g. "-x" "--extract"
  #
  local round=0
  for i in "${!args_0[@]}"; do
    case "${args_0[i]}" in
      "$1"|"$2") round=$(( round + 1 ))
        if (( round > 1 )); then
          echo
          msg E args "invalid duplicate option"
          msg I "Conflicting option: ${args_0[i]} ${args_0[i+1]}"
          msg I "try \`${IAM} --help'"
          echo
          (( SOURCED )) && { \cleanup; return 1; } || exit 1
        fi ;;
    esac
  done
}

function chk_file {
  # requires global variable name.
  local var=$1
  local file="${!var}"
  local name=${var%_0}
  if [[ -z ${file} ]]; then
    echo
    msg E args "${name} not specified"
    msg I "try \`${IAM} --help'"
    echo
    return 1
  elif [[ -d ${file} ]]; then
    echo
    msg E args "${name} cannot be a directory"
    msg I "directory: ${file}"
    msg I "try \`${IAM} --help'"
    echo
    return 1
  elif [[ ! -e ${file} ]]; then
    echo
    msg E args "${name} not found"
    msg I "file: ${file}"
    msg I "try \`${IAM} --help'"
    echo
    return 1
  fi
}

function chk_directory {
  # requires global variable name.
  local var=$1
  local directory="${!var}"
  if [[ ! -e ${directory} ]]; then
    echo
    msg E args "directory does not exist"
    msg I "directory: ${directory}"
    msg I "try \`${IAM} --help'"
    echo
    return 1
  elif [[ ! -d ${directory} ]]; then
    echo
    msg E args "not a directory"
    msg I "directory: ${directory}"
    msg I "try \`${IAM} --help'"
    echo
    return 1
  fi
}

# MAIN #

# ---------------------------------------------------------------------------
# Phase 1 uses the LOPTS[] array to initialize all supported long option
# variables and rejects long options arguments, that are written with a
# single dash (-) instead of two dashes (--), e.g.: -help vs. --help.
# ---------------------------------------------------------------------------

# The LOPTS array lists all supported long options (--option).
#
LOPTS=( version help changelog install uninstall
        debug extract verbose test outdir )

phase_init "$@"

if phase1_error_lopts; then
    (( SOURCED )) && { \cleanup; return 1; } || exit 1
fi

# ---------------------------------------------------------------------------
# Phase 2 handles command-line arguments that comply to information
# standards, such as --help, --version, etc. Such tasks terminate upon
# completion and do not need to involve the parsing of options related
# to a program's actuall purpose or operation.
#
# Recognized options are consumed from args_0 and mapped to state
# variables and/or actions. Any remaining entries in args_0 after
# processing are considered invalid.
# ---------------------------------------------------------------------------

for i in "${!args_0[@]}"; do
  case "${args_0[i]}" in
    -h|--help)   help_0=1
                 HELP_ACTION=show_help
                 unset args_0[i] ;;
    --changelog) changelog_0=1
                 CHANGELOG_ACTION=show_changelog
                 unset args_0[i] ;;
    --version)   version_0=1
                 VERSION_ACTION=show_version
                 unset args_0[i] ;;
    --install)   install_0=1
                 INSTALL_ACTION=run_install
                 unset args_0[i] ;;
    --uninstall) uninstall_0=1
                 UNINSTALL_ACTION=run_uninstall
                 unset args_0[i] ;;
  esac
done

# The option_set array defines one or more option sets that are mutually
# exclusive with all other command-line options. An option set may consist
# of a single option or multiple options. When a set consists of multiple
# options, the options within that set are not mutually exclusive and may
# be combined. For example:
#
# install
#   The --install option is mutually exclusive and may not be combined
#   with any other command-line argument.
#
# help version changelog
#   Any combination of --help, --version, and --changelog is valid,
#   but may not be combined with any other command-line argument.
#
option_sets_0=( 'install' 'uninstall' 'help version changelog' )

# At least one info/admin option was consumed.
#
if (( ${#args_0[@]} < ${LAST_INDEX} )); then
  # Consider any remaining arguments invalid
  #
  if args_remaining; then
    (( SOURCED )) && { \cleanup; return 1; } || exit 1
  fi
  # Check invalid combinations if info/admin args apply.
  #
  if ! validate_option_sets; then
    (( SOURCED )) && { \cleanup; return 1; } || exit 1
  fi
  # Continue executing the appropriate functions and exit the program.
  #
  phase2_action
  (( SOURCED )) && { \cleanup; return ${status_0}; } || exit ${status_0}
fi

# ---------------------------------------------------------------------------
# Phase 3 parses simple short and long options, such as -v, --verbose or
# -d, --debug. Short options may also be combined into a single argument,
# such as -dv or -vd. When matched, the corresponding variables are set
# to 1 and the appropriate arguments are consumed from args_0[].
#
# Options may appear multiple times and in any order. Duplicate matches
# simply repeat setting the corresponding variables to 1.
#
# Phase 3 only handles options that require no additional parameter.
# Any character within a combined short option that is not recognized by
# this phase is reconstructed as a new command-line argument and left for
# subsequent parsing phases. For example:
#
#   -dvx 2         =>  debug_0=1, verbose_0=1, -x 2
#   --abc -vdcx 2  =>  debug_0=1, verbose_0=1, -cx 2 --abc
# ---------------------------------------------------------------------------

for i in "${!args_0[@]}"; do
  case "${args_0[i]}" in
    -d|--debug) debug_0=1; unset args_0[i] ;;
    -t|--test) test_0=1; unset args_0[i] ;;
    -v|--verbose) verbose_0=1; unset args_0[i] ;;
    -[dtv]*)
      # Support combined arguments.
      #
      bundle="${args_0[i]#-}"
      nomatch=
      for (( j=0; j<${#bundle}; j++ )); do
        char="${bundle:j:1}"
        case "${char}" in
          d) debug_0=1 ;;
          t) test_0=1 ;;
          v) verbose_0=1 ;;
          *) nomatch+="${char}" ;;
        esac
      done
      # Consume recognized option letters and keep any unrecognized
      # letters as a single dash-prefixed argument. e.g.: -dave => -ae
      # This also permits mixed bundles such as -dvx 2 and -dxv 2,
      # both of which become -x 2 and are handled by the subsequent
      # parser phase for options that take a parameter.
      #
      [[ -n ${nomatch} ]] && args_0[i]="-${nomatch}" || unset args_0[i]
    ;;
  esac
done

# ---------------------------------------------------------------------------
# Phase 4 parses dash (-) options that have not yet been consumed by
# any the previous parsing phase and require an additional argument or
# parameter to be valid, such as a number, word, or directory.
#
# Valid options and parameters are assigned to variables and consumed
# from the argument list, just like in the previous parsing phases.
# These options may occur in any order, but unlike simple options are
# NOT allowed to be specified multiple times.
#
# The actual payload of these variables. e.g. --extract 3, where 3 is the
# payload, will need to be stored in additional variables, e.g. type_0.
# For example:
#
#   -x 1                =>  extract_0=1, type_0=1
#   --outdir ~/Desktop  =>  outdir_0=1, directory_0=~/Desktop
# ---------------------------------------------------------------------------

payload_init "type directory"

phase4_duplicate "-x" "--extract"
#
for i in "${!args_0[@]}"; do
  if [[ ${extract_0} = 1 ]]; then
    case "${args_0[i]}" in
      [0-3]) type_0=${args_0[i]}; unset args_0[i]; break ;;
      *) echo
         msg E args "invalid extraction type"
         msg I "type: ${args_0[i]}"
         msg I "try \`${IAM} --help'"
         echo
         (( SOURCED )) && { \cleanup; return 1; } || exit 1 ;;
    esac
  else
    case "${args_0[i]}" in
      -x|--extract)
        # Must not be the last argument
        #
        if (( i + 1 < ${LAST_INDEX} )); then
          extract_0=1; unset args_0[i]
        else
          echo
          msg E args "missing extraction type"
          msg I "try \`${IAM} --help'"
          echo
          (( SOURCED )) && { \cleanup; return 1; } || exit 1
        fi ;;
    esac
  fi
done

phase4_duplicate "-o" "--outdir"
#
for i in "${!args_0[@]}"; do
  if [[ ${outdir_0} = 1 ]]; then
    case "${args_0[i]}" in
      -*) echo
          msg E args "invalid directory name"
          msg I "directory: ${args_0[i]}"
          msg I "try \`${IAM} --help'"
          echo
          (( SOURCED )) && { \cleanup; return 1; } || exit 1 ;;
       *) directory_0="${args_0[i]}"; unset args_0[i]; break ;;
    esac
  else
    case "${args_0[i]}" in
      -o|--outdir)
        # Must not be the last argument.
        #
        if (( i + 1 < ${LAST_INDEX} )); then
          outdir_0=1; unset args_0[i]
        else
          echo
          msg E args "missing output directory name"
          msg I "try \`${IAM} --help'"
          echo
          (( SOURCED )) && { \cleanup; return 1; } || exit 1
        fi ;;
    esac
  fi
done

# ---------------------------------------------------------------------------
# Phase 5 parses stand-alone command-line arguments that are neither
# dash (-) options nor option parameters, such as keywords or filenames.
#
# At this stage, all valid command-line options and arguments should have
# been consumed and variables.
# ---------------------------------------------------------------------------

payload_init "target"

for i in "${!args_0[@]}"; do
  case "${args_0[i]}" in
    "") continue ;; # Ignore empty array elements.
    -*) continue ;; # Ignore dash (-) options.
    *) target_0="${args_0[i]}"; unset args_0[i]; break ;;
  esac
done

# Consider any remaining arguments invalid
#
if args_remaining; then
  (( SOURCED )) && { \cleanup; return 1; } || exit 1
fi

# ---------------------------------------------------------------------------
# Phase 6 validates relationships between parsed command-line arguments,
# such as mandatory arguments, incompatible argument combinations, and
# argument sanity checks as required. For example:
# ---------------------------------------------------------------------------

# Option --test and --outdir are mutually exclusive.
#
if (( test_0 )); then
  option_sets_0=( 'verbose debug extract test' )
  if ! validate_option_sets; then
    (( SOURCED )) && { \cleanup; return 1; } || exit 1
  fi
fi

# Assign extract and type default.
#
[[ ${extract_0} -eq 0 ]] && { type_0=3; }

# Target is mandatory, file must exist.
#
if ! chk_file target_0; then
  (( SOURCED )) && { \cleanup; return 1; } || exit 1
fi

# Output directory (-o) when specified must be a directory.
#
if [[ ${outdir_0} -eq 1 ]]; then
  if ! chk_directory directory_0; then
     (( SOURCED )) && { \cleanup; return 1; } || exit 1
  fi
fi

# Proceed with showing the results.
#
echo
echo "RESULT"
echo "------"
echo
printf "Command-line arguments:\n\n%s\n\n" "$*"
printf "Parsed options:\n\n"
printf "%-20s%s\n" "Source execution:" ${SOURCED}
printf "%-20s%s\n" target: "${target_0}"
printf "%-20s%s" "extract type:" "${type_0}"
(( extract_0 )) && printf "\n" || printf " (default)\n"
(( test_0 )) && printf "%-20s%s\n" "test mode:" on
(( outdir_0 )) && printf "%-20s%s\n" "output directory:" "${directory_0}"
printf "%-20s%s\n" outdir: ${outdir_0}
printf "%-20s%s\n" test: ${test_0}
printf "%-20s%s\n" debug: ${debug_0}
printf "%-20s%s\n" verbose: ${verbose_0}
#
(( SOURCED )) && cleanup

function msg {
  # Arguments: $1 = Severity E W I
  #            $2 = Function or facility (optional)
  #            $3 = Text (optional)
  # URL: https://maxjot.github.io/maxJOT/ref/coherent_messaging.html
  #
  local b1 t0 iam opt cln fac= str=
  b1=$( tput bold; tput setaf 1)
  t0=$( tput sgr0 )
  cln="${BASH_LINENO[0]}" # Caller line number.
  iam="${BASH_SOURCE[0]##*/}"
  iam="${iam%.sh}"
  [[ -n $2 ]] && fac=", $2"
  [[ -n $3 ]] && str=", $3"
  [[ $1 == E ]] && str=", ${b1}$3${t0}"
  opt="${fac}${str}"
  case "$1" in
    E) printf "%%%s-E-%s%s\n\a" "${iam}" ${cln} "${opt}" >&2 ;;
    W) printf "%%%s-W-%s%s\n" "${iam}" ${cln} "${opt}" >&2 ;;
    I) printf "%%%s-I-%s%s\n" "${iam}" ${cln} "${opt}" ;;
    *) printf "%s\n" "$@" ;;
  esac
}
